Two prepared faces. A smoother path to finished furniture.
Bring the warmth of Okoume to two-sided furniture, coated components and fitted joinery. Our 18mm panels arrive calibrated and sanded on both faces at 150–180 grit, ready for the next stage of your finishing process. Send a part drawing, finish reference or photograph; we will help select the faces, core and blank sizes, develop a finish-and-fit sample, and quote the factory preparation your workshop needs.
Available to order · 10–15 days production · Container shipping
TECHNICAL DATA · TDS-PS-06 · Rev 2.0 (Oct 2026)
18mm Sanded Okoume Plywood technical data
Order 18mm Okoume plywood with both faces sanded for furniture and coated joinery. This sanded range uses melamine bonding, 6–10% moisture and a 450–550 kg/m³ density reference. A 1220 × 2440 mm sheet is about 26.8 kg at the central 500 kg/m³ density, or 24.1–29.5 kg across the range.
Declared values from our technical data sheet TDS-PS-06, Rev 2.0 (Oct 2026). The values for your order are confirmed in the quotation.
Face / Back Veneer Species
African Okoume / Gaboon (Aucoumea klaineana, 0.50–1.20 mm thickness)
Surface Appearance Grade
B/BB or BB/CC (EN 635-2 / NF B 54-171 Grade II/III)
Surface Finishing
Calibrated and fine sanded both sides (150#–180# grit)
Core Construction
Selected veneer core for the 450–550 kg/m³ sanded range; compare the all-Okoume performance option separately below
Standard Sheet Sizes
1220 × 2440 mm, 1220 × 2500 mm, 1250 × 2500 mm; custom sizes by enquiry
Thickness Tolerance
≤ 9 mm: ±0.25 mm | 12–25 mm: ±0.35 mm (EN 315)
Adhesive System
Melamine bonding for the sanded furniture/joinery configuration; E1 emission requirement
Service Class / Exposure Duty
Sanded furniture, coated components and fitted joinery; select the bond for the intended service
Length & Width Tolerance
±1.0 mm (EN 315)
Squareness
≤ 1.0 mm / m (EN 324-2)
Panel Flatness
≤ 2.0 mm / m (EN 315)
Reference Standards
EN 636-2 and EN 314-2 Class 2 for the selected melamine-bonded configuration; all-Okoume exterior options carry their separate bond requirements
Harmonized System (HS) Code
4412.31
18mm sanded range — supply condition and weight
Density reference
500 kg/m³ ±10%, equivalent to 450–550 kg/m³
Moisture content
6–10%
Bare-sheet weight, 1220 × 2440 × 18 mm
About 26.8 kg at 500 kg/m³; 24.1–29.5 kg across 450–550 kg/m³
All-Okoume alternative — thickness, weight and loading at 520 kg/m³
Nominal Thickness
Ply Count
Area Weight
Sheet Weight (1220x2440)
Est. Load / 40HQ
3 mm
3 plies
1.56 kg/m²
4.6 kg
~5,374 pcs
4 mm
5 plies
2.08 kg/m²
6.2 kg
~4,031 pcs
6 mm
5 plies
3.12 kg/m²
9.3 kg
~2,687 pcs
9 mm
7 plies
4.68 kg/m²
13.9 kg
~1,791 pcs
12 mm
9 plies
6.24 kg/m²
18.6 kg
~1,343 pcs
15 mm
11 plies
7.80 kg/m²
23.2 kg
~1,074 pcs
18 mm
11 plies
9.36 kg/m²
27.9 kg
~895 pcs
22 mm
13 plies
11.44 kg/m²
34.1 kg
~732 pcs
25 mm
15 plies
13.00 kg/m²
38.7 kg
~644 pcs
The separate all-Okoume performance table describes that construction; retain the selected core and bond with the quotation. The loading table uses 1220 × 2440 mm sheets at 520 kg/m³ and approximately 48 m³ of panel volume. Other cores, finishes, packing and route payload limits change the final shipment weight and quantity.
The 27.9 kg entry in the all-Okoume loading table is a separate 520 kg/m³ configuration. The sanded range above retains its own 500 kg/m³ central reference and 6–10% supply moisture.
Compare an all-Okoume construction
For an order requiring Okoume throughout, use the construction-specific mechanical values below. Keep its density and bond with that option when comparing against the sanded range above.
All-Okoume construction — alternative mechanical data
Density (All-Okoume), kg/m³
500–540 Test method: EN 323
Moisture Content at Dispatch, %
8.0 – 12.0 Test method: EN 322
Bending Strength — Longitudinal (MOR //), MPa
≥ 42.0 (All-Okoume) Test method: EN 310
Bending Strength — Transverse (MOR T), MPa
≥ 30.0 (All-Okoume) Test method: EN 310
Modulus of Elasticity — Longitudinal (MOE //), MPa
≥ 4,900 Test method: EN 310
Modulus of Elasticity — Transverse (MOE T), MPa
≥ 3,600 Test method: EN 310
Bonding Quality (72h Boil Test — WBP Option), MPa
≥ 1.0 (Wood failure ≥ 80%) Test method: EN 314-2 Class 3
Screw Withdrawal — Face / Edge, N
≥ 1,420 (Face) / ≥ 1,020 (Edge) Test method: EN 320
Formaldehyde Release, mg/m³
≤ 0.124 (E1) / ≤ 0.05 (E0 / Phenolic) Test method: EN 717-1
African Okoume / Gaboon; face veneer 0.50–1.20mm, selected with the required preparation.
Appearance grades
B/BB or BB/CC; choose front, reverse, colour range, joints and permitted repairs for the finished use.
Core construction
Selected veneer core for the sanded range; all-Okoume is a separately specified construction.
Delivered thickness limits
18mm ±0.35mm, or 17.65–18.35mm, at the supplied measurement stage.
Length and width tolerance
±1.0mm; include the required usable rectangle and custom dimensions in the order.
Squareness and flatness
Squareness ≤1.0mm/m and panel flatness ≤2.0mm/m, with the inspection condition specified.
Internal adhesive
Melamine bonding for the sanded furniture and joinery configuration.
Bond and emissions
EN 636-2 / EN 314-2 Class 2 reference and E1 requirement for the selected melamine-bonded configuration.
Supply moisture
6–10%, with the measuring condition and next finishing process identified.
Density reference
500kg/m³ ±10%, equivalent to 450–550kg/m³, for the sanded range.
1220 × 2440 × 18mm sheet mass
Calculated 26.8kg at 500kg/m³; 24.1–29.5kg across 450–550kg/m³, before finish and packing.
All-Okoume option
Separate construction, bond, moisture and mechanical data in the technical table; its 520kg/m³ loading basis stays with that option.
Further preparation and finish
Plan removal on each face, cured coating or covering build, remaining veneer and completed dimensions.
Part sizes and cutting
State finished or blank dimensions, edge allowances, grain, trim, kerf and required component counts.
Finish and fit sample
Include both faces, visible edges and the critical joint, with the actual finish system and assembly datum.
Packing and OEM
Protect sanded show faces and edges; identify parts, orientation, separators, marking positions and receiving sequence.
Supply and after-sales
Available to order; 10–15 days production, container shipping, freight terms per order and 180-day after-sales warranty.
Choose the construction, finish and size for your project. We’ll bring the selected options and finished tolerances together in your quotation.
18MM OKOUME · BOTH FACES SANDED
Choose prepared faces for the finish your furniture will show
Our 18mm Sanded Okoume Plywood brings the grain and colour of Okoume to furniture, coated components and fitted joinery. Both faces receive 150#–180# calibrated fine sanding. Send a furniture photo, finish reference or cutting list so our factory can connect the visible faces, core and preparation to your next operation.
Choose 1220 × 2440mm, 1220 × 2500mm or 1250 × 2500mm, with custom dimensions by enquiry. The current calibrated 18mm configuration has a ±0.35mm thickness tolerance, giving 17.65–18.35mm, and ±1.0mm length and width tolerances. Include any tighter component fit at its actual finishing or assembly stage in the sample brief.
Select the face, reverse and inner construction
Choose B/BB or BB/CC with the veneer colour, joints and permitted repairs suited to the furniture. For a divider or freestanding part, select the reverse under the same finish as the front.
The Okoume decorative face and the inner veneers are separate choices. Identify the selected core on the quotation, or request the all-Okoume option where that construction suits the project.
Choose full sheets, cut blanks or processed parts
State the supplied stage alongside the completed dimensions. Our team can work from a sheet schedule, mating component or part drawing, including grain direction, further sanding, coatings, bonding and edges.
The 18mm Okoume component page develops cabinet parts and hardware. This page focuses on two-face finishing, flush joints and the quantity of material needed through those operations.
For another thickness, use the Okoume plywood range to select its construction and supply condition with our factory team.
CORE, ADHESIVE AND SUPPLY CONDITION
Keep the chosen construction with its material data
The main sanded configuration uses melamine glue, an E1 emission reference, 6–10% moisture content and 500kg/m³ ±10% density, equivalent to 450–550kg/m³. Keep these references with the selected veneer core and the agreed inspection condition.
Material references for the sanded range
Parameter
Reference
Selection for the order
Internal adhesive
Melamine glue
Select the bond for the intended service conditions and required documents.
Formaldehyde class
E1
Include the applicable test basis and documents for the selected construction and destination.
Moisture content
6–10%
Record supply condition and measurement method for the planned finishing or bonding route.
Density
500kg/m³ ±10%; 450–550kg/m³
Use the selected construction and dimensions to plan bare-panel mass.
Related sanded thicknesses
3 / 6 / 9 / 12 / 18mm
This page develops the nominal 18mm sanded configuration.
The technical data separates this main configuration from the all-Okoume alternative. Its 520kg/m³ loading basis, 11-ply 18mm construction and 27.9kg per 1220 × 2440mm sheet belong to that named alternative. Select the corresponding mechanical, bond and emission information with the construction being quoted.
Melamine glue describes the internal adhesive. For a ready-applied decorative surface, choose the decor and substrate through our melamine plywood range.
FROM SURFACE REFERENCE TO PURCHASE SPECIFICATION
Give the factory the appearance and fit your part needs
A finish reference and a drawing of the most demanding joint make a useful starting point. We can help turn them into a surface selection, delivered thickness range and preparation route.
Surface, thickness and fit requirements for the finished component
Requirement
What it controls
How to define it
Both faces prepared
The supplied treatment of front and reverse.
Face identifiers, agreed preparation and the next process on each side.
Surface appearance
Visible scratches, grain, joints, repairs and finish response.
Representative finished sample, lighting and viewing conditions.
Thickness consistency
The dimensional envelope after the specified operations.
Minimum/maximum limits, locations, measuring stage and method.
Flatness and assembly fit
The shape of the complete part and its relationship to the support.
Part size, support condition, datum and allowable joint step or fit.
Use a two-face sample to connect the supplied 150#–180# sanding with your stain, paint, oil, clear coat or bonding system. Record any later workshop preparation separately, including the treatment of a concealed reverse.
FURNITURE, JOINERY AND FINISHED COMPONENTS
Plan the panel around how the finished part will be used
Furniture visible from both sides
For room dividers, open shelving and freestanding furniture, select both viewing faces and exposed edges together. Include supports, spans and connections with the appearance brief so the selected construction follows the whole component.
Flush inserts and adjoining joinery
Send the mating part, a joint photo or the level the visible face must reach. Choose the front or rear datum with the fixing detail, then include coatings, backing and adhesive in the completed section.
Stained, oiled or clear-coated parts
Compare adjoining components in their installed orientation under the intended finish. Include representative grain, a veneer joint and permitted repair in the sample to select the appearance range for production.
Painted or bonded decorative components
Choose the primer, paint or applied covering with the preparation and final dimensions. Bring the adhesive, treatment of each face and balancing approach into the component trial with the finishing-system supplier.
PANEL THICKNESS THROUGH PREPARATION AND COATING
Calculate the completed thickness at the fitting stage
Record the panel thickness entering your process, removal from each face and the cured build added to each face. This connects the supplied panel to the completed dimension at a recess, joint or fitting.
With an 18.00mm incoming panel, 0.08mm front removal and 0.12mm reverse removal leave 17.80mm. Adding a 0.15mm cured front coating and 0.10mm rear coating gives 18.05mm.
The process window below uses 17.80–18.20mm incoming material, 0.10–0.30mm total removal and 0.16–0.34mm total cured build. These are the selected calculation inputs for the finishing route; the factory supply tolerance remains the separate 17.65–18.35mm range above.
Process inputs; removal and added build are totals for both faces
Process calculation
Supplied panel
Further removal / added build
Completed thickness
Selected process inputs
18.00mm
0.20mm / 0.25mm
18.05mm
Smallest completed result
17.80mm
0.30mm / 0.16mm
17.66mm
Largest completed result
18.20mm
0.10mm / 0.34mm
18.44mm
To keep the completed part within 17.80–18.40mm across those full process ranges, the calculated incoming window is 17.94–18.16mm: 17.94 − 0.30 + 0.16 = 17.80, and 18.16 − 0.10 + 0.34 = 18.40. Bring this target to the factory when discussing material selection and process control.
Trial the proposed removal against the selected face veneer, then measure the finished component. Identify measuring positions, edge offsets, instrument contact and conditioning, including the locations used by a recess or fitting. Record minimum and maximum readings with the part and face IDs.
FRONT DATUM OR REAR DATUM
Choose where the joint needs to be flush
For this joint calculation, the prepared panel inputs are 17.80mm and 18.20mm. Adding 0.15mm front film and 0.10mm rear film to each produces 18.05mm and 18.45mm completed sections, a 0.40mm difference.
Both drawings use the same thickness scale at the local panel edges. The coloured strips show the specified coating builds; the block between them represents the prepared plywood section.
Align the backs: the front step is 0.40mm.Equal coating builds retain the difference between the two prepared panel sections.Align the fronts: the difference moves behind.The rear support, fixing or bonding detail accommodates the difference in the completed sections.
Put the visible face, rear support and connection on the same joint drawing. Where both planes need a common level, discuss the dimensional selection or fitting detail with the available veneer and finishing route. Include the actual joint in the component sample.
FRONT, REVERSE AND ADJOINING PARTS
Select a finish that can be repeated across the order
Start with the chosen core and factory-sanded condition. Mark the front, reverse and grain direction before dividing trial pieces, then use the planned preparation, cleaning, finish product, application and drying sequence.
Include the visible details
Use grain variation, veneer joints, permitted repairs and any exposed edge. Compare adjoining parts in their final orientation. Assess the cured finish under normal viewing and the agreed raking light for scratch and surface inspection.
Carry the same sample through the primer and intermediate preparation where an opaque finish is planned. The completed coating and fitted edge are the surfaces the buyer will see.
Retain a reproducible finish reference
When comparing preparation routes, vary the intended preparation step while keeping the other finishing inputs consistent. Label the difference and record the product, batch, treatment of each face and drying condition.
Keep an uncoated piece alongside the approved finish reference and record the final thickness at the fitting. Comparing those stages helps identify whether a colour or texture change comes from veneer, preparation or coating.
THREE FORMATS AT NOMINAL 18MM
Plan sheet handling from the selected construction
The table calculates bare-panel mass from nominal 18mm volume, using the main configuration's 500kg/m³ centre value and 450–550kg/m³ range. Add the finish, edges, attachments and packing at their respective supply stages when planning handling and freight.
Calculated at nominal 18mm; mass rounded to 0.1kg
Sheet format
Area / nominal volume
At 500kg/m³
At 450–550kg/m³
1220 × 2440mm
2.9768m² / 0.0535824m³
26.8kg
24.1–29.5kg
1220 × 2500mm
3.0500m² / 0.0549000m³
27.5kg
24.7–30.2kg
1250 × 2500mm
3.1250m² / 0.0562500m³
28.1kg
25.3–30.9kg
Keep the separate all-Okoume 520kg/m³ / 27.9kg loading reference with that selected 1220 × 2440mm construction. For a component mass limit, weigh a completed part with its actual finish and attachments, then use the packed-order mass for shipping.
Carry the moisture condition into the finish trial
The main supply reference is 6–10%. Agree the inspection condition and measurement method, then store and condition the selected panels for the finishing or bonding system. Record the material condition with the approved sample and workshop process.
CUT-TO-SIZE RECTANGLES AND OVERSIZE BLANKS
Include the machining allowance before choosing a sheet format
The cutting schedule below uses a 610 × 1230mm rectangle with its 1230mm direction along the sheet length. It removes 10mm at every outside sheet edge and uses 3mm inter-part kerfs in a regular grid. The stated rectangle contains the complete cut-stage dimensions.
Read the worked detail and calculations
Adding 3mm to every part edge for later squaring or profiling creates a 616 × 1236mm blank. This allowance enlarges the outline by 6mm in each direction; face sanding has its own removal budget.
Fixed part direction, 10mm sheet-edge trimming and 3mm kerfs
Sheet format
Usable width / length
610 × 1230mm rectangles
616 × 1236mm blanks
1220 × 2440mm
1200 / 2420mm
1 × 1 = 1
1 × 1 = 1
1220 × 2500mm
1200 / 2480mm
1 × 2 = 2
1 × 2 = 2
1250 × 2500mm
1230 / 2480mm
2 × 2 = 4
1 × 2 = 2
Two 610mm widths and a kerf need 1223mm, fitting the widest sheet's 1230mm usable width. Two 1230mm lengths need 2463mm, fitting 2480mm. The narrower 1200mm width and shorter 2420mm length each restrict the layout.
For the oversize blanks, two 616mm widths need 1235mm, exceeding the same usable width. Two 1236mm lengths need 2475mm, still fitting the usable length. The 1250 × 2500mm sheet therefore changes from four rectangles to two oversize blanks.
Keep grain and face placement with the layout
Mark permitted rotation, both visible faces and matching relationships before changing the nest. Review the minimum usable dimensions, edge condition, holding margins and selected face areas with the factory. Allocate remaining strips to other parts where their dimensions and face requirements fit the cutting list.
MATERIAL FOR 80 COMPONENTS
Compare quotations at the stage your workshop receives
80 required parts: sheet quantities from the stated cutting layouts
Sheet format
610 × 1230mm stage
616 × 1236mm blank stage
1220 × 2440mm
80 sheets / 238.144m²
80 sheets / 238.144m²
1220 × 2500mm
40 sheets / 122.000m²
40 sheets / 122.000m²
1250 × 2500mm
20 sheets / 62.500m²
40 sheets / 125.000m²
The 80 final rectangles occupy 60.024m². Their oversize blanks occupy 60.91008m², an increase of 0.88608m² before final trimming. That small area increase removes the second column from the widest-sheet layout and doubles its sheet count.
Use actual quotations for the same accepted construction and surface selection. At the 610 × 1230mm stage, compare 20 wide sheets with 40 middle-format sheets: the wide format's sheet price reaches the same raw-material total at twice the middle format's price. At the 616 × 1236mm stage, both need 40 sheets, so compare their actual prices and processing scope directly.
Include sample material, face selection and production reserve in the final schedule. Our factory can quote full sanded sheets, oversize blanks or finished components with the required machining, finishing, inspection and packing. Keep the supplied stage and accepted component quantity beside each quotation.
PROTECT THE PREPARED FACE THROUGH MACHINING
Bring the surface and edge details into production

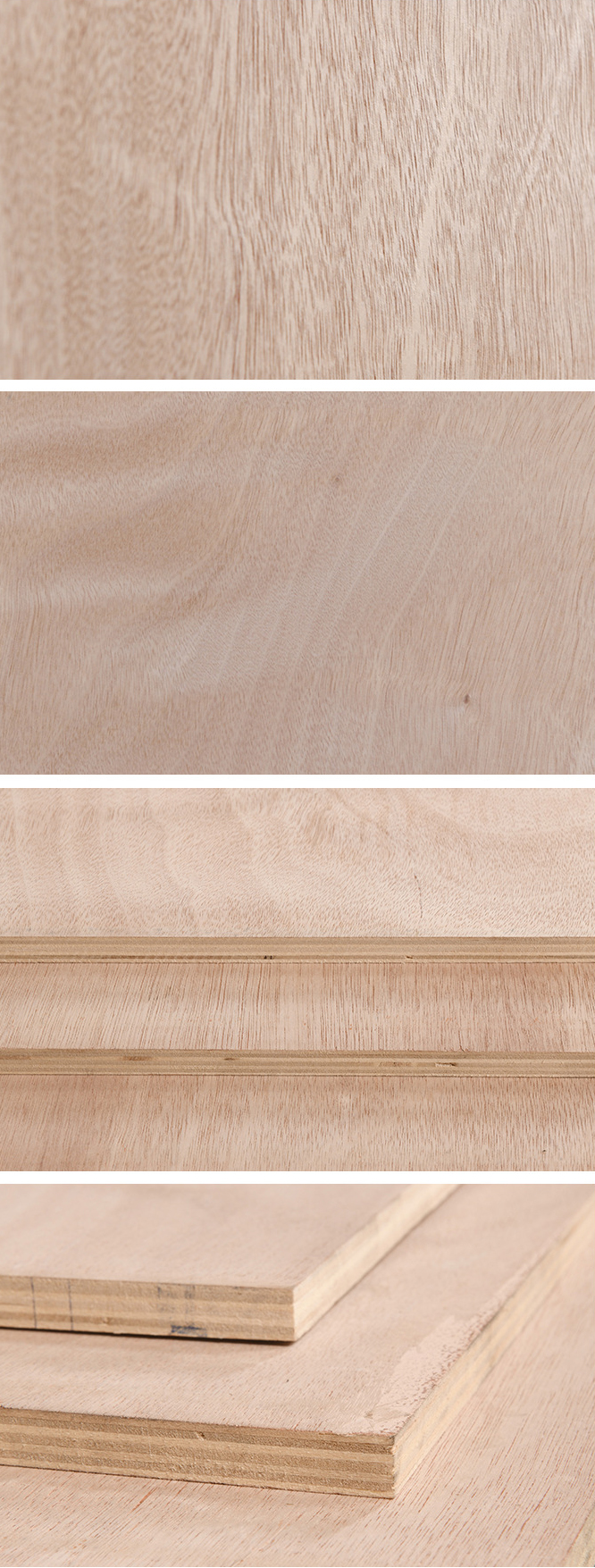

Okoume veneer grain, surface detail and plywood edges. Use the selected faces in a finished sample to compare appearance across your furniture components.
Review the face before and after finishing
Compare grain, abrasive marks, repairs and local unevenness under the agreed lighting. Use the uncoated and finished references to choose the next preparation step around the visible feature and available face veneer.
Control further removal at component details
Include sharp edges, routed profiles, veneer joints and exposed corners in the sample. Record thickness change through any additional preparation and check the face at those areas before repeating the process.
Separate wood preparation and intercoat sanding
Identify bare-wood preparation separately from smoothing between cured coatings. Follow the selected finish system's drying, recoat and cleaning requirements, with each face's treatment recorded.
Protect show faces between operations
Use cleaning, labels and separators compatible with the finish or adhesive. Include materials that contact the prepared surface in the trial so handling and packing preserve the approved appearance.
Include newly exposed edges
Select the treatment for sawn, routed and drilled edges with the exposed core and fitting. Measure the completed geometry at banding and hardware interfaces, and plan support, storage and both-face treatment around the part's flatness requirement.
FACTORY SAMPLES AND COMPLETE COMPONENTS
Send the finish reference and the joint that controls the order
Start with a part that answers the main selection
Send a finish reference, component photo or mating detail. We help select the core, face and reverse, preparation and supplied thickness, then include a visible edge and the joint controlling flushness or fit. Identify the preparation your workshop will carry out.
Take the selected sample into a production schedule
List sheet or part quantities, grain direction, blank allowances, final dimensions and requested documents. Confirm which operations the factory supplies, with protective packing, destination and the delivery window on the same brief.
We have our own factory and more than 10 years of export experience. Sample support, customer designs, branding and OEM requirements can be included in the order. Mark suitable label and branding positions with the visible faces and finishing route.
Connect the approved finish to inspection and packing
Records that connect the supplied panel to the accepted completed part
Inspection stage
What to check
Record to retain
Supplied sanded panel
Front/reverse selection, sanding appearance, dimensions and material condition.
Construction identity, face markings, sample reference, measuring method and agreed limits.
After workshop preparation
Local surface changes, retained veneer, actual thickness and exposed edges.
Preparation route, measurements at agreed positions and any accepted rework.
After the finish
Colour, scratches, repair visibility, surface continuity and completed thickness.
Finish reference, operations on each face, drying condition and viewing conditions.
At the mating joint
Reference plane, step, clearance and actual support or fixing detail.
Drawing revision, measured interface and assembled sample result.
Packed order
Protected prepared faces, supported parts, orientation and quantity.
Part or pack identification, packing scope and actual shipment data.
Carry the approved sample, drawing revision and selected configuration into the production order. Check dimensions and surface appearance at the supplied stage, with the final joint and finish assessed through the agreed component sample.
Include E1, bond and other project-document needs in the enquiry. For marine, structural, waterproof or fire-performance requirements, our team can connect the intended use to the appropriate construction and document scope. The production and quality information explains the factory's broader sampling, inspection and delivery support.
PLAN YOUR PANEL ORDER
Bring the finish, fit and material order together.
Choose the factory-prepared panel around the work your workshop needs to complete. Our team connects the two faces and core with the coating route, critical joint and blank schedule, so samples and quotations describe the same finished component.

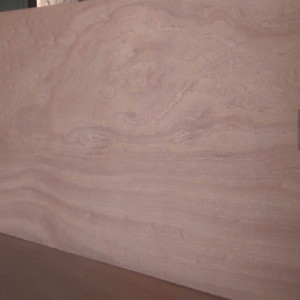

18mm Sanded Okoume Plywood
Your sanded supply, finishing route and fitted part
Front and reverse appearance, core and finish system
Supplied thickness limits, completed fit and reference plane
Blank quantities, grain, supplied operations, packing and destination
Finish adjoining pieces from the selected construction, including both required faces and a visible edge. Check the joint from its actual reference plane and retain the incoming and completed measurements with the finishing sequence.
Standard samples without special work or a logo have no sample charge; delivery is separate. Custom samples are agreed individually.
Order quantity
Our starting guidance is one container for standard sizes and 3,000–10,000 pieces for custom sizes or designs. Tell us your trial quantity.
Production
All products are made to customer order. Production takes 10–15 days; the order confirmation records the start date and production schedule. Sea transit is additional.
Payment
Where a deposit applies, our standard reference is 30% before production, with the balance after inspection and before loading. T/T or L/C terms are agreed for the order.
Shipping
Panel orders ship by container. Share your destination so we can arrange the loading plan and quote the freight separately from production.
After-sales warranty
All products include a 180-day after-sales warranty. Contact our team with the order reference and details of any product concern.
Tell us your quantity, sample needs and target delivery date. We’ll put the price, payment terms and production schedule into your quotation.
Share the material, thickness and test standard your project requires. Our factory team will help you select the product reports and documents for your purchase.
Production & inspection
We can plan production and inspection around your panel specification, with dimensional checks, recorded readings and packing photographs for your order.
We prepare packing details, pack quantities and dispatch documents for your order. Share the destination and receiving requirements so our team can help plan delivery.
Choose it for two-sided furniture, coated parts, fitted inserts and joinery where the surface and final fit both matter. Our factory helps select the front, reverse, core and supplied preparation around your drawing or finish reference.
What surface preparation is supplied?
Both sides are calibrated and fine sanded at 150–180 grit. Choose B/BB or BB/CC appearance and the intended finish alongside that preparation. A coated sample connects the grain, permitted repairs and any further workshop preparation to the result you want.
How does this differ from your other 18mm Okoume page?
This page develops the two-face sanding, finishing route and thickness control needed for fitted parts. Our other 18mm Okoume page develops the core, cabinet components and hardware. Use the selected construction and supplied stage when comparing quotations.
Which sheet sizes and cutting services can I request?
Choose 1220 × 2440mm, 1220 × 2500mm or 1250 × 2500mm, or send custom dimensions. We can discuss full sanded sheets, cut blanks and further machining. Include the grain direction, final or oversize dimensions, required quantities and operations your workshop wants supplied.
Which dimensions apply before coating?
The nominal 18mm sanded supply has a ±0.35mm thickness reference, or 17.65–18.35mm, and ±1.0mm length and width tolerance. Squareness is ≤1.0mm/m and flatness ≤2.0mm/m. Identify the supplied measuring condition separately from the finished component requirement.
Is all-Okoume construction available?
Yes. Specify Okoume throughout when that construction is required. Its technical values and loading table form a separate option. The main sanded range uses a 450–550kg/m³ density reference and 6–10% supply moisture; the all-Okoume option retains its own density, 8–12% moisture and selected bond.
Does melamine bonding include a decorative melamine surface?
Melamine bonding describes this panel’s internal adhesive. Choose an applied melamine decor through our melamine plywood range, with the substrate and decorative faces specified together. For this sanded configuration, include your coating or covering in the enquiry.
How much does one 18mm sheet weigh?
At 1220 × 2440mm, nominal volume is 0.0535824m³. The calculated mass is 26.8kg at 500kg/m³ or 24.1–29.5kg over the 450–550kg/m³ range. At the same central density, 1220 × 2500mm is 27.5kg and 1250 × 2500mm is 28.1kg. Use actual packed mass for shipping and the completed part for a handling-weight target.
Why does the all-Okoume table show 27.9kg?
That table uses the separate all-Okoume construction at 520kg/m³; its 18mm row lists 11 plies and about 27.9kg for 1220 × 2440mm. Its loading quantities use approximately 48m³ of panel volume, with actual pack dimensions and route payload limits applied to shipment planning.
How do I account for sanding and coating in final thickness?
Start with supplied thickness, subtract further removal and add the cured build on both faces. With an 18.00mm panel, 0.08mm front and 0.12mm reverse removal leave 17.80mm. Adding 0.15mm front and 0.10mm rear coatings gives 18.05mm. Use the actual process inputs and remaining veneer for your part.
Can you help work backwards from a finished thickness requirement?
Yes. For a completed window of 17.80–18.40mm, total removal of 0.10–0.30mm and total added build of 0.16–0.34mm, the incoming calculation gives 17.94–18.16mm. Send your own finished limits and process range so we can develop the tighter supply or preparation route needed alongside the standard tolerance.
How do I make adjoining finished faces flush?
Choose the joint’s reference plane and support detail. Two prepared panels at 17.80mm and 18.20mm, each receiving 0.25mm total coating, finish at 18.05mm and 18.45mm. A shared rear plane leaves a 0.40mm front step; aligning the fronts moves that difference to the rear. Develop the joint section and sample with the available veneer and fixing detail.
How should I choose a stain, clear finish or paint?
Trial the intended finish on both selected faces, including a joint, permitted repair and visible edge. Keep the preparation and application sequence with the coated reference, then compare adjoining parts in their final orientation after the specified drying or cure stage. Bare-wood preparation and sanding between coatings remain separate operations.
Why can a small cutting allowance change the number of sheets?
With 10mm perimeter trim and 3mm kerfs, a 1250 × 2500mm sheet fits four 610 × 1230mm rectangles in the stated grain direction. Adding 3mm to each part edge makes 616 × 1236mm blanks: two widths need 1235mm, exceeding the 1230mm usable width. The grid then gives two blanks.
How many sheets does the 80-component schedule require?
For the stated 610 × 1230mm grid, the three sheet formats need 80, 40 and 20 sheets respectively. At the 616 × 1236mm blank stage, they need 80, 40 and 40. Keep the actual grain, accepted faces, trial parts and process reserve with the final order quantity.
How should I compare sheet and component quotations?
Compare the same construction, preparation and accepted part stage. In the 80-part schedule, twenty wide sheets replace forty middle-format sheets at the final-rectangle stage, giving a 2:1 raw-sheet price break-even ratio. At the oversize-blank stage both formats need forty sheets. Add machining, finishing, inspection and packing to compare the work delivered.
Which documents should accompany the chosen construction?
Identify the core, bond, emission requirement and destination with your component. The technical table separates the sanded melamine-bonded range from the all-Okoume performance option. Request the product documents for the configuration you select, including any project-specific service or load requirements.
How do I request samples and start production?
Send a drawing, photograph or finish reference with the sizes, quantities and destination you know. We help complete the faces, core, supply stage and critical joint sample. Production is 10–15 days, with container shipping, order-specific freight terms and a 180-day after-sales warranty.
Let’s prepare the Okoume panels your workshop needs.
Send the drawing, photograph or finish you have in mind, with sizes, quantity and destination. We help complete the face and core selection, develop the finishing and fitting sample, and quote full sheets or prepared components.
Nominal thickness: 18mm, with the sanded supply and completed component identified separately.
Supplied surface: Calibrated and fine sanded on both sides, 150–180 grit.
Have a fitted-joint section, finish reference or blank schedule? Email it to sales@plywoodsupplier.cn. Start with the details you have; we’ll help you work through the rest.
CONTINUE YOUR PANEL SELECTION
Okoume veneer plywood
Compare our panels
Browse the material range and compare the configurations for your order.
Optional Google Analytics and Ads cookies measure visits and enquiries. Reject keeps these cookies off; basic cookieless measurement continues. Enquiry details are never sent to Google. Privacy details.
