PLYWOOD & MDF · CHINA
BROWN FILM PLYWOOD · FROM OUR OWN FACTORY
Source brown film faced plywood for your formwork layout and repeat supply. Compare our general range, dedicated 18mm panels and birch-base larger sheets, then let our factory team turn your sizes and quantities into a sample plan and quotation.
START WITH YOUR REQUIREMENT
Start with the part you need to build: an uninterrupted concrete face, a repeated form set or a cut industrial component. We help you compare sheet formats, core construction and face arrangements against that drawing, so price and layout are reviewed together.
Bring a panel schedule, cutting list or photograph of the finish you want. We can discuss a sample with the selected core and film, and include a cut edge or joint where it matters. For concrete-facing work, a representative trial helps you assess the surface and panel condition under your intended process.
Scroll sideways to compare all columns.
| Selection route | What to decide | Explore |
|---|---|---|
| General brown film | Compare thicknesses, birch or poplar core options and face arrangements before fixing your panel specification. Use matched samples to review the film and pressing route. | Brown film range |
| Dedicated 18 mm | Start here when your schedule calls for 18mm panels. Compare the listed cores and sheet formats, then agree the working faces and finished thickness limits. | 18 mm brown film panel |
| Birch-core configuration | Review 1250 × 2500mm and 1500 × 3000mm formats with the selected birch layup. Compare the finished parts and joint layout before choosing a sheet size. | Birch-core brown shuttering panel |
| Black film alternative | Explore black film for the same job. Keep the core, thickness, bond and working-face requirements together so the quotations cover the same scope. | Black film panels |
DEFINE THE ORDER
Scroll sideways to compare all columns.
| Requirement | Details to agree | Why it matters |
|---|---|---|
| Brown working face | Film reference, finish and acceptance sample. | Keep surface appearance consistent between deliveries. |
| Core construction | Birch or another agreed core, layup and repair limits. | A brown face is not evidence of an all-birch panel. |
| Dimensions | Thickness, length, width and final tolerance. | Check the full-sheet layout and intended joint positions. |
| Factory edges | Coating and acceptable edge condition. | Record any processing that follows dispatch. |
| Order identity | Quantity per configuration and pack labels. | Distinguish similar-looking sheets in a mixed order. |
| General brown range | 3, 6, 9, 12, 15, 18, 25 and 32mm; 1220 × 2440mm reference format. Birch or poplar core options. | Select a defined construction and finished thickness; custom dimensions can be discussed with your schedule. |
| Face arrangement | General range: F/F smooth/smooth, F/W smooth/wiremesh or W/W wiremesh/wiremesh. | Name the concrete-contact or other working side and specify the reverse separately. |
| Dedicated 18mm route | Standard poplar, combi, 100% eucalyptus hardwood or birch cores, with 1220 × 2440mm, 1250 × 2500mm, 1200 × 2400mm and 1500 × 3000mm formats. Pine, other mixed cores and additional formats are custom configurations. | Use the 18mm detail page to compare the full format list and finished limits for your cutting plan. |
| Birch-base large sheets | 1250 × 2500mm or 1500 × 3000mm; listed thicknesses 4, 6, 9, 12, 15, 18, 21, 24, 27 and 30mm. | Specify the birch layup with the thickness rather than carrying the general brown-range core into this route. |
| Film and process | General brown range lists 120g/m² and 220g/m² films, with one-time or two-time hot pressing. | Keep the selected film and process with the sample and any applicable wear or bond evidence. |
| Finished parts | Drawing revision, working-face direction, joints, holes, final dimensions and treated edges. | Quote delivered parts and included machining together with full-sheet options. |
A larger sheet may give you a longer uninterrupted working face. Across repeated sets, a smaller format may make better use of the cutting plan. Send the finished sizes, quantities and permitted joint positions so we can discuss trimming, orientation and usable parts alongside pack size and handling requirements.
Keep the selected core, thickness, film and sample reference with your panel schedule. For a repeat order, send that specification and identify any changed part, surface or quantity. This gives us a clear starting point for the new quotation and keeps production checks and packing connected to the panels you selected.
Send your repeated component sizes and the joint positions your layout allows. We can compare full sheets and cut-part supply with the appropriate core and film. Keep trimming, drilling, edge coating, packing and delivered quantities in the comparison so a lower sheet price does not hide a different supply scope.
OUR PRODUCT RANGE
Compare 3 configurations from our range. Open a product to compare its specifications and photographs.

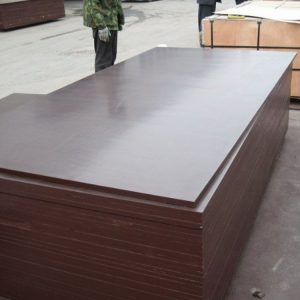

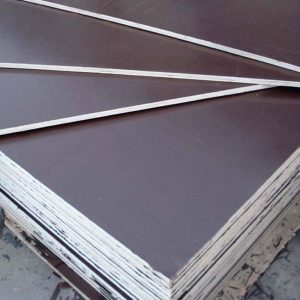

Brown film panels in 3, 6, 9, 12, 15, 18, 25 and 32mm, with birch or poplar core options. Compare smooth or wiremesh faces and the selected pressing route for your job.
View product specification

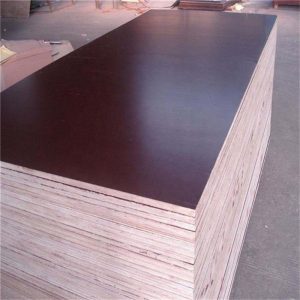

Birch-base brown plywood in 1250 × 2500mm and 1500 × 3000mm sheets, with listed 4–30mm options. Plan joints, finished parts and protected edges around the selected layup.
View product specification
An 18mm panel with standard poplar, combi, 100% eucalyptus hardwood or birch cores and four standard sheet formats. Pine, other mixed cores and additional sizes can be quoted separately for your drawing.
View product specificationFROM PANEL TO COMPONENT
SAMPLE THE PROPOSED PANEL
Use identified samples to compare the general brown range, the dedicated 18mm panel or birch-base larger sheets. Review film shade, actual thickness, cut edge and the chosen pressing route together.
Add a finished part or representative casting trial when fit or concrete appearance controls the decision. Keep the accepted construction and sample reference with your cutting list for the first order and repeat deliveries.
Scroll sideways to compare all columns.
| Assessment | Sample or trial scope | Record to retain |
|---|---|---|
| Panel comparison | Brown face, reverse, core edge and original edge coating for each selected route. | Construction, film reference, thickness and appearance observations. |
| Cut joint or component | The part outline, joint or attachment that matters to your layout. | Drawing revision, final dimensions, face direction and protected cuts. |
| Concrete-finish trial | Proposed panel and release treatment with a representative joint or fixing detail. | Panel identity, trial conditions, concrete finish and panel condition after stripping. |
SAMPLE & ORDER ACCEPTANCE
DOCUMENTS & ORDER SUPPORT
We help your purchasing team gather product reports, inspection records and packing documents for your order.
Product reference: Brown Film Faced Plywood — specification.
Share the material, thickness and test standard your project requires. Our factory team will help you select the product reports and documents for your purchase.
We can plan production and inspection around your panel specification, with dimensional checks, recorded readings and packing photographs for your order.
Plan the inspection scopeWe prepare packing details, pack quantities and dispatch documents for your order. Share the destination and receiving requirements so our team can help plan delivery.
Review the delivery scopeStart with your application or panel reference. Our team will help with the specification and documents.
BEFORE YOU ORDER
The general range lists birch and poplar. The dedicated 18mm route offers poplar, combi, 100% eucalyptus hardwood or birch; pine and other mixed-core options are specified separately as custom configurations. The larger brown shuttering route uses a birch plywood base. Tell us your core requirement and application so we can quote the right route.
Start with the finished part sizes and permitted joints. Compare those against the formats on the selected product page, allowing for trimming and handling. We can discuss custom sizes and confirm the thickness, core, quantity and packing combination in your quotation.
New cuts and holes need the protection specified for the finished use. Factory edge coating applies to the original edges, so include later processing in your handling and finishing plan.
Keep the approved film, shade, surface texture, core and sample reference with your order specification. Send that reference for repeat deliveries and identify any changed dimensions or working conditions so production checks follow the same agreed target.
Choose each face for its role. Smooth/smooth suits two specified smooth faces; smooth/wiremesh gives different contact surfaces. For a walking or loading face, discuss the textured range and the surface evidence required by your application.
Compare the film appearance, actual thickness, core edge and supplied edge coating. Add a cut joint or fitting detail where it controls your component. For concrete appearance, arrange a representative casting trial using the proposed panel and release process.
Send the quantity for each configuration. We will work through production quantities, separated packing and loading, with clear labels for each core, thickness and format so the panels can be received and allocated to the right job.
WORK DIRECTLY WITH OUR FACTORY
Send the thickness, sheet or part sizes, quantities and destination. Add a drawing, cutting list or brown film reference if available. We can help you compare the general, 18mm and birch-core routes, and discuss the sample or working trial that would help you choose.
Have a form layout, cutting list or finish reference? Email it to sales@plywoodsupplier.cn. Add your company name and project reference so we can connect the files with your enquiry.
Your quotation sets out the selected core, thickness, sheet or component sizes, bond, film and edge treatment, together with required documents, sample arrangements, order quantity, packing and production timing.
Tell us your panel, dimensions, quantity and destination port.
